A new kid in town...whow, got my new R20 last Friday and used the weekend to get some more things clear. Please feel free to use the following informations to get your toy under controll!
If you have any further details... please feel free to send me some informations
|
Data-Files I will try to give you some data files to save your setup-time. Please feel free to send me some for upload to this page. I will not be responssible for any results you maybe have with 3rd party data files uploaded into your R20 Please use this fileas as a source for further tests. The Icom file format is not able to be used with other software, that cause some problems for the download. |
|
Data File: R20 original, in the moment of delivery, European version German data-file with all BOS channels and frequencies, 2m / 4m Sample of Audio recording To get the files downloadable you may use this zip-file
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

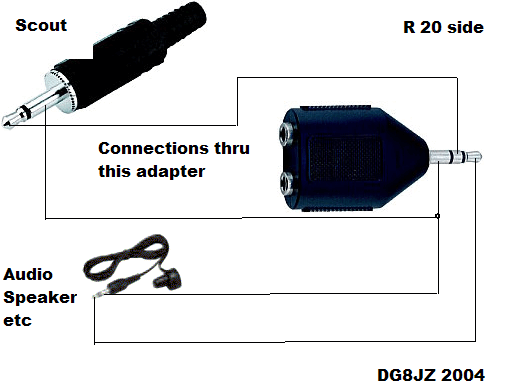

Reaction-Tune with Optoelectronics The Reaction-Tune is one of the most intersting features between 2 different products ever. The Optoelectronics handheld counters Scout, Digital-Scout, Xplorer etc. provide a seriell communication port to be connected to the older ICOM scanners like R10. The R20 cause a little problem, because Speaker-Out and CI-V Data-Port is one plug. So you will switch of the speaker audio in the moment you plug in the communication port from the frequency counter. I solves the problem this way: Basic connection (for cable Scout > R20; speaker will be switched of, audio recorder will work): Scout side: center pin of 2,5 mm plug = data R20 side: ring = data (NOT the center pin) Advanced connection: (Scout to R 20 with addapter to get the audio to a second plug) Scout side: center pin of 2,5 mm plug = data R 20: use of stereo / mono adapter 3,5mm stereo into 2* 3,5mm mono
. Please check which side will have the a) connection from 3,5mm mono to 3,5mm center pin = Audio side b) connection 3,5mm stereo ring to the 3,5mm mono out on the other side = data from Scout |
|
|
